Product Overview:

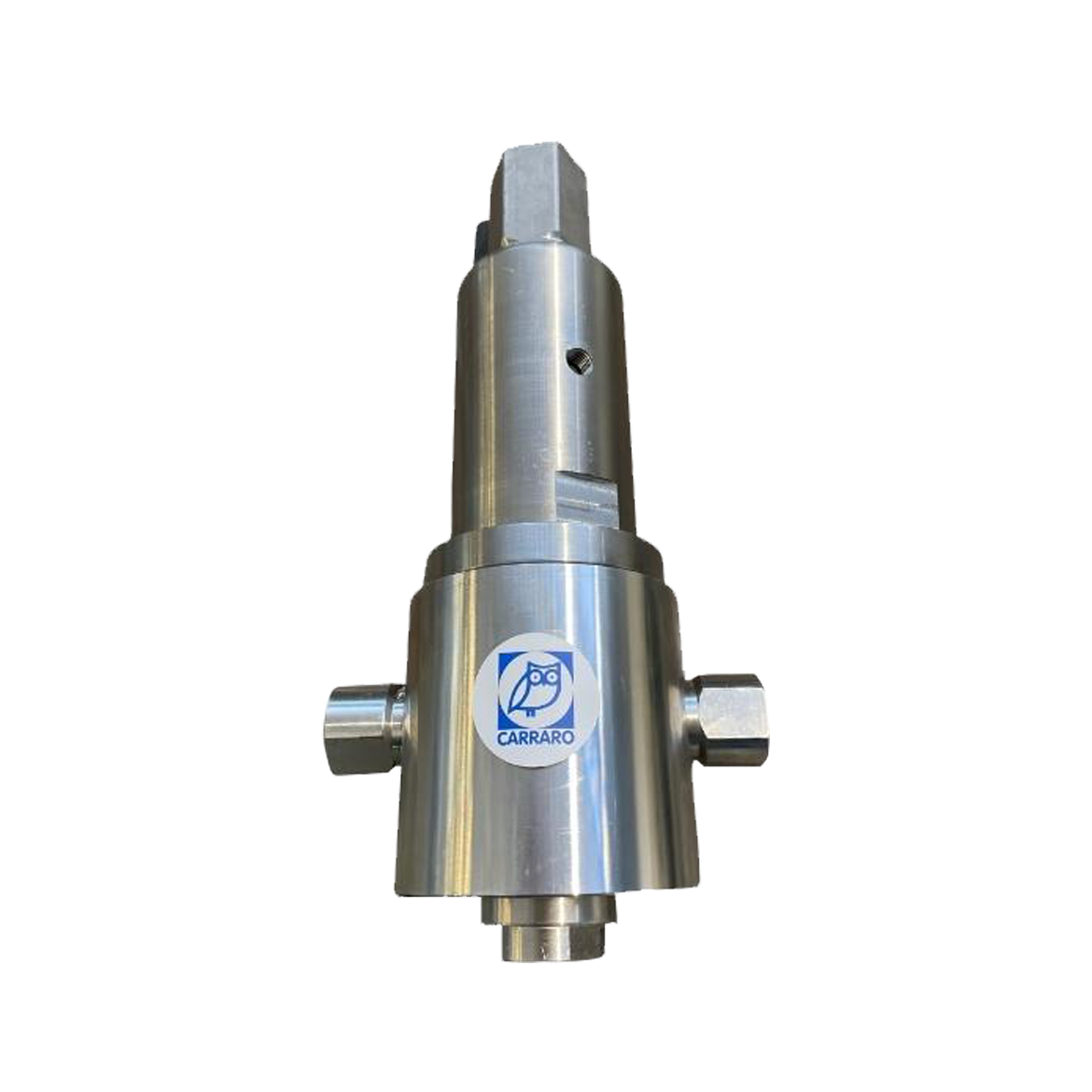

The Carraro UBA HHP is a high-pressure, spring-piston loaded, direct‑operated pressure regulator—designed for both pressure reduction and as a relief/back‑pressure valve. Key characteristics include:
- Direct‑acting, spring‑piston design (self‑actuated, no pilot needed)
- Suitable for high pressures (ANSI 2500 rating)
- Can function as a pressure reducer, relief valve, or back‑pressure regulator
- Available in stainless steel (316SS) or Monel construction
- Internal pressure sensing (compact, rugged, minimal installation footprint)
In short, the UBA HHP is a robust, direct-action regulator tailored for demanding applications requiring high inlet pressures.
Specification
Function:
Reduction, direct acting regulator for high-pressure processes.
Diameters:
From “1/4” up to 2” (DN ¼” only with threaded end)
Connection Diameters:
From ¼” up to 2”
Connection Type:
Threaded ends NPT-F, Flanged ANSI (upon request)
Max Rating:
ANSI 2500
Body Material:
Available in stainless steel (316SS) or Monel construction
CV:
From 0,31 to 2,11
Trim Material:
Set Pressure Range:
Max Set Pressure Range:
Max Upstream Pressure:
300 bar.g.
Regulated Intervals:
40 – 135 barg. For higher or lower pressures contact our technical department
Seat:
Single
Diaphragms:
Max Inlet Pressure:
Regulated Pressure Range:
Min Temperature:
With HNBR seals - 25 °C, with FKM (Viton®) seals – 10 °C.
Max Temperature:
With HNBR seals: up to +120 °C, with FKM (Viton®) seals: up to +200 °C
Lever Options:
NR Of Nozzles:
Rangeability:
Pilot Circuit:
Tightness Class:
Class IV for metal seat. Class VI for soft seat
Max Liquid Flow:
AP:
Pressure Rating:
Standard Sizes
Standard Forging ASME Materials
